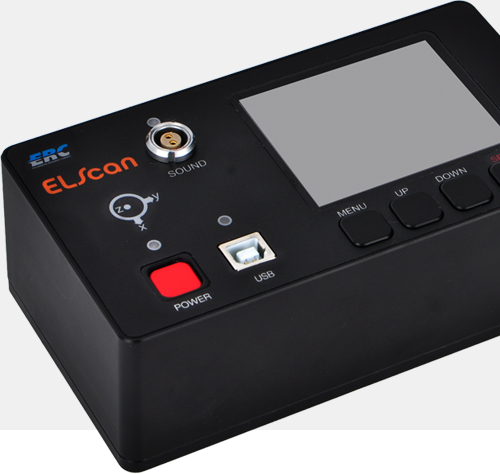

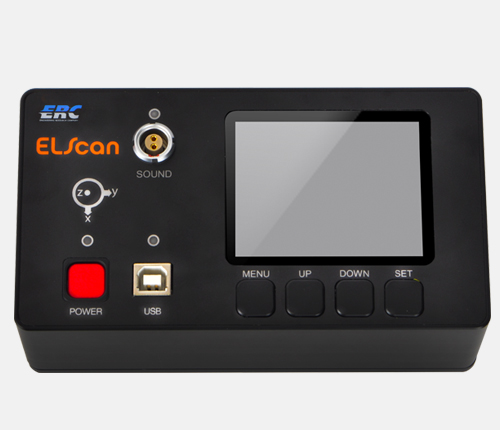

EL-Scan

Same Quality! Smaller size!

The EL-Scan device has the same function as the Vscope ride comfort measurement device.

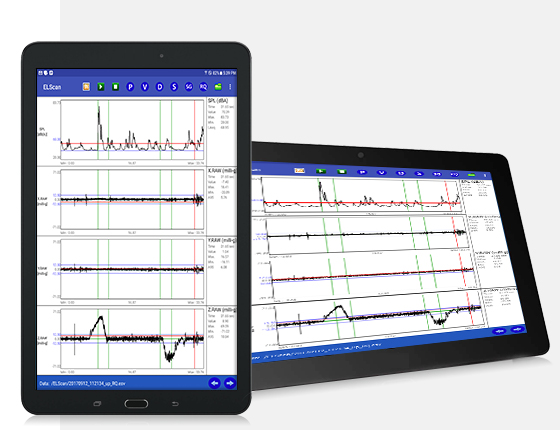

PC and tablet interoperability

Measurement and analysis programs are basically made wirelessly using Android Tablet PC, and can be connected to a laptop via USB cable for detailed measurement and analysis.

Tilt angle measurement possible

In addition, the 2-axis angle sensor function can be used, so it can be used for measuring the inclination angle of escalators and so on!

Product Specifications

Category Contents
Built-in sensor Built-in 3-axis acceleration sensor
Noise sensor · Type 1
· Measurable range 20 ~ 20 KHz
External vibration sensor · Three (1.5 ~ 5000Hz : 5%)
· IEPE method
Measurement function · Measures riding quality only
· Measures Elevator emergency stop
· Angle measurement function
Measuring method · Real-time measurement in connection with PC
· Can be measured independently without a PC
Analysis function (ride quality) · Acceleration, speed, distance, jerk, noise
· LPF, HPF, ISO, RMS
Communication method USB / Wi-Fi
Memory capacity 8GB of data can be stored in the device
Sampling Rate · Ride quality: 256, 512, 1024 SPS (100, 200, 400 Hz)
· Precision measurement: 65536 SPC (25.6KHz)
ADC Resolution 24bit
Measurable noise range 20 ~ 20KHz / A-Weighting : Type 2 (Typically Type 1)
Software · Ride Quality Analysis Program
· Programs for Android Tablet PC
Weight and size (excluding sensors) 0.8 Kg / 150(W) x 82(D) x 47(H)
Power 4.2V Lithium Ion Battery
