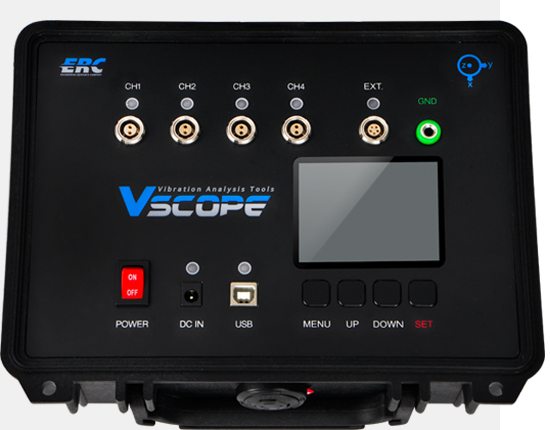

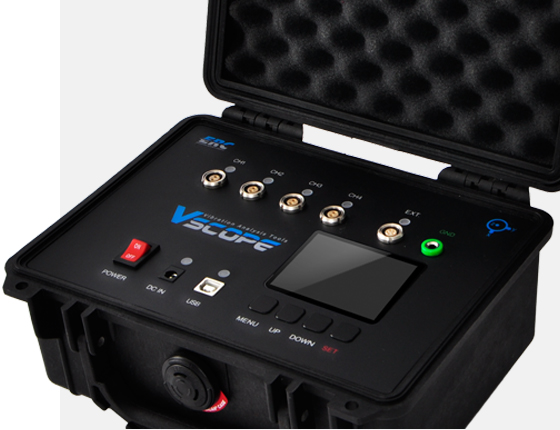

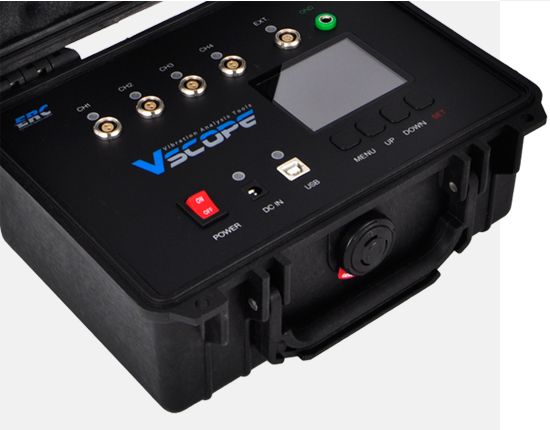

Vscope Precision 4CH

Reduce time with up to 4 sensors

In addition to the Vscope ride comfort function, up to four external acceleration sensors can be used, which greatly shortens the measurement and analysis time with several sensors at the same time

Ride and vibration detection

The analytical function is the same as the Vscope ride comfort + precision 1CH equipment and analyzes the vibration of the decelerator and the motor other than ride comfort

Various analysis functions

Time Signal Analysis, Spectrum Analysis, Waterfall Contour, Octave Band, and Total Vibration Analysis are available.

Product Specifications

Division Contents
Built-in sensor Built-in 3-axis acceleration sensor
Noise sensor · Type 1
· Measuring range 20 ~ 20 KHz
External vibration sensor · Three (1.5 ~ 5000Hz : 5%)
· IEPE method
Measurement function · Ride measurement only
· Elevator emergency stop measurement
· Vibration or noise measurement (4CH)
Measuring method · Real-time measurement in connection with PC
· Independent measurement in the absence of PC
Analysis function (ride quality) · Acceleration, speed, distance, jerk, noise
· LPF, HPF, ISO, RMS
Analysis function (precise diagnosis) · Acceleration and noise
· Time Series Data Analysis
· Spectrum Analysis
· Octave Band Analysis

· Waterfall Graph Analysis · Total Vibration History Analysis
· Envelope Analysis
· Defect Analysis
Communication method U USB / Wi-Fi (to be added)
Save measurement data Save 8GB on the meter
Sampling Rate · Sampling Rate : 256, 512, 1024 SPS (100, 200, 400 Hz)
· Precision measurement : 65536 SPC (25.6KHz)
ADC Resolution 24bit
Noise measuring range 20 ~ 20KHz / A-Weighting : Type 2 (Typically Type 1)
Software · Ride Analysis Program
· Precision Diagnosis Program
Weight and size (excluding sensors) 2.7 Kg / 235(W) x 190(D) x 120(H)
Power 16.8V Lithium Ion Battery (4.2V/3.4Ah x 4cell, 57Wh)
