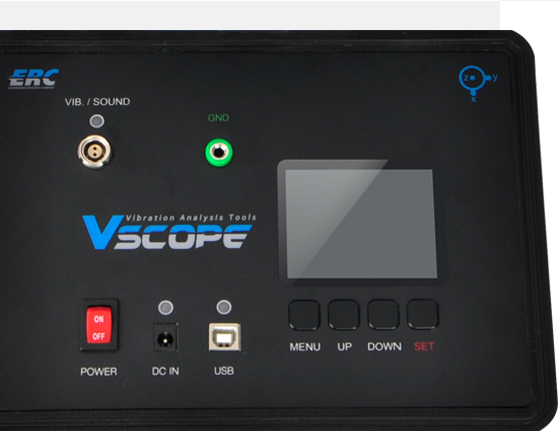

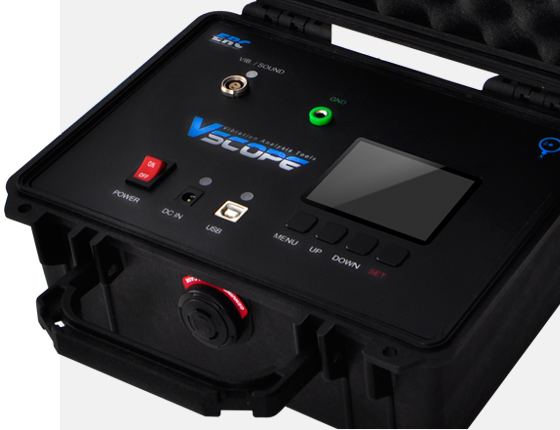

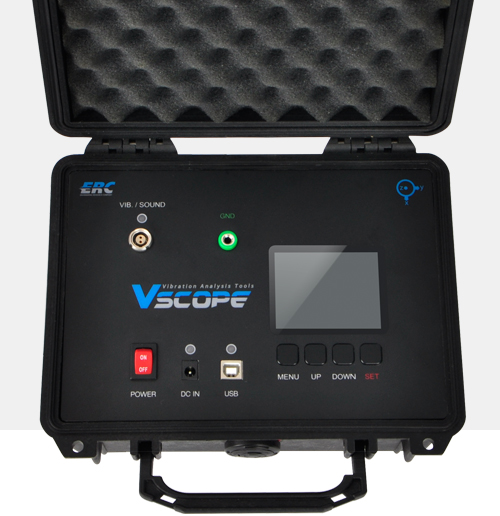

Vscope Ride Quality

Ease of data measurement and analysis

This equipment is used to measure ride comfort of an elevator. It measures real-time ride comfort of an elevator by using three axis acceleration sensor and external noise sensor built in the measuring instrument.

Composed of pure domestic technology

Measurement and analysis accuracy is verified by calibration of certified calibration institute. It is easy to use compared with foreign equipments of the same level, and the inspection time is drastically reduced by taking advantages of real time measurement.

Real-time field evaluation

Measurement can be done by measuring device itself, so it can be measured and evaluated even in environments where it is difficult to use notebook PC or tablet PC

Product Specifications

Division Contents
Built-in sensor Built-in 3-axis acceleration sensor
Noise sensor · Type 2
· Measuring range 20 ~ 20 KHz
External vibration sensor None
Measurement function · Riding sense measurement only
· Elevator emergency stop measurement
Measuring method · Real-time measurement in connection with PC
· Independent measurement in the absence of PC.
Analysis function (ride comfort) · Acceleration, speed, distance, jerk, noise
· LPF, HPF, ISO, RMS
Communication method USB / Wi-Fi (to be added)
Save measurement data Sav 8GB on the meter
Sampling Rate Ride : 256, 512, 1024 SPS (100, 200, 400 Hz)
ADC Resolution 24bit
Noise measuring range 20 ~ 20KHz / A-Weighting: Type 2 (Typically Type 1)
Software Ride Analysis Program
Weight and size (excluding sensors) 2.7 Kg / 235(W) x 190(D) x 120(H)
Power 16.8V Lithium Ion Battery
